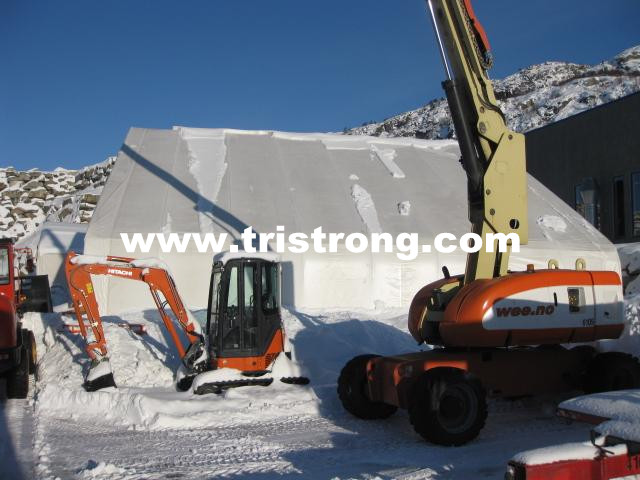

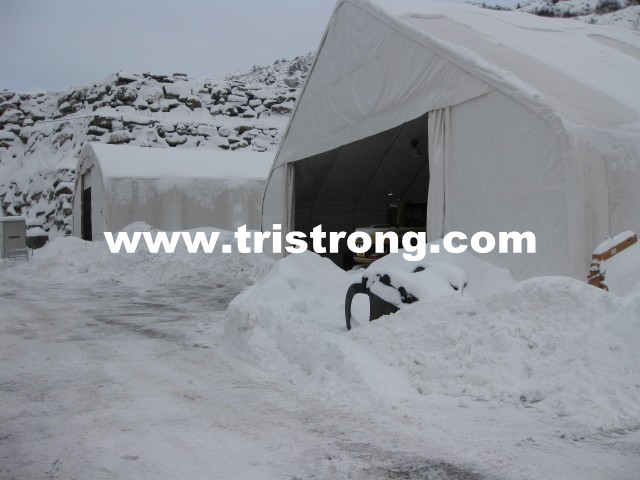

Steel Structure Warehouse (TSU-6549)

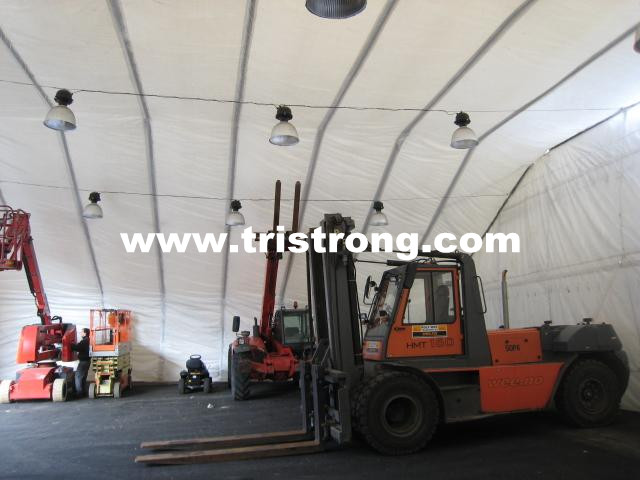

This trussed frame shelter adopts a peaked roof style, uses very big specification materials, and applies to the enforced design. The heavy duty trussed sections are fixed together by flange plates, instead of bolting, to keep the biggest strength of the tubing. Much more support tubes are added to the structures. It is well calculted and designed to be used in the heavy snow and wind areas like in North America and north Europe. A big sliding door of W12xH4.0m in the front panel can allow the big folklift to go in and out freely, also this is a very good choice as aircraft hangar.
Frame: Double tube trussed frame that made of high quality galvanized steel tube, complete with all connection kits, anchor kits. Many diagonal support tubes to grasp the frame as one whole. One sliding door W12xH4.0m.
Cover: 300gsm PE(polythene) or 610gsm PVC fabric, high level UV treated for long life, fire retardant and 100% water-proof.
Designed for customer for very heavy snow load with 20m super wide. Special diagonal support tubes connection for maximum strength. And we also could do longer shelter(20m,40m,50m,60m,70m) according to your requirement. Detailed Information:
Size: L15 x W20 x H8m (L49´ x W65' x H26.2')
All Steel frame is hot galvanized for Antirust.
Arches : Specially Designed for extremely Strong Wind and Snow. Truss arch made of Φ 76x3.0mm tubing, Enhanced truss arch spacing, 1.875 m(6.15') arch spacing, more truss arches for support. With base plate at bottom of each arch and 3 stake pegs on each base plate for anchor.
Purlins : 60x2.5mm steel tubing, total 13 groups purlins. With diagonal support tubes in all the structure.
Door Type: Sliding door, door size: W12 x H4.0m (W39.3' x H13.1').
Delivery time : 20-25 Work Days/GP after order confirmed.
Fabric: 610g/sq.m PVC with 10 years longevity, UV resistant, Fire retardant..
Steel Crate Package
Qty/FCL: 3 sets/40´
Welcome OEM & ODM order; Custom Made is also Welcome.
